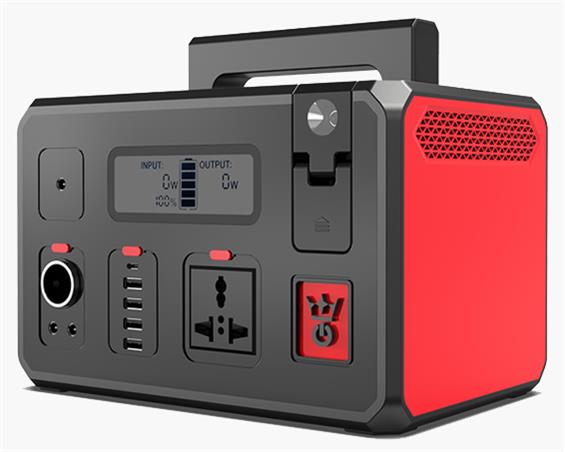

| Model No.: |
PF-S200 |
PF-S300 |
PF-S500 |
PF-S1000 |
| Capacity: |
307Wh (20.8Ah 14.4V ) |
324Wh ( 22.5.Ah 14.4V) |
515Wh ( 34.8Ah 14.8V) |
1198Wh (54Ah 22.2V) |
| Battery Type: |
83,200mAh Lithium-ion Battery |
90,000mAh Lithium-ion Battery |
139,200mAh Lithium-ion Battery |
324,000mAh Lithium-ion Battery |
| Charge Methods |
AC Wall Outlet, 12V Car adaptor,
Solar Panel (optional) |
AC Wall Outlet, 12V Car adaptor,
Solar Panel (optional) |
AC Wall Outlet, 12V Car adaptor, PD charge
Solar Panel (optional) |
AC Wall Outlet, 12V Car adaptor, PD charge
Solar Panel (optional) |
| Input: |
DC 12C-30V 3.4A |
DC 12C-30V 3.4A |
DC 12C-30V 3.78A
USB-C PD60W ( 5V 3A /9V 3A /12V 3A/15V 3A/20V 3A) |
DC 12C-30V 5A
USB-C PD100W ( 5V 3A /9V 3A /12V 3A/15V 3A/20V 5A) |
| Full Recharge Time: |
6.5 Hours (AC)
Around 5.5 Hours
(Optional PEP-S100W solar panel with Full Sun) |
7.5 Hours (AC)
Around 6.5 Hours
(Optional PEP-S100W solar panel with Full Sun) |
8 Hours (AC)
5 Hours( AC+PD60W)
Around 7.5 Hours
(Optional PEP-S100W solar panel with Full Sun) |
11 Hours (AC)
6 Hours( AC+PD100W)
Around 13Hours
(Optional PEP-S100W solar panel with Full Sun) |
| AC Output (Pure sine wave) |
110V/220V 60Hz/50Hz, 200W (300W peak.) |
110V/220V 60Hz/50Hz, 300W (400W peak.) |
110V/220V 60Hz/50Hz, 500W (600W peak.) |
110V/220V 60Hz/50Hz, 1000W (2000W peak.) |
| Car Port: |
12V 10A (Total) |
12V 10A (Total) |
12V 10A (Total) |
12V 10A (Total) |
| DC Output*2 |
12V 10A (Total) |
12V 10A (Total) |
12V 10A (Total) |
12V 10A (Total) |
| USB Output |
USB-C PD 27W( 5V 3A /9V 3A/12V 2.25A)
USB-A1 QC3.0 (5V 3A/9V 2A /12V 1.5A)
USB-A2 & 3: 5V 2.4A |
USB-C PD 27W( 5V 3A /9V 3A/12V 2.25A)
USB-A1 QC3.0 (5V 3A/9V 2A /12V 1.5A)
USB-A2 & 3: 5V 2.4A |
USB-C PD60W ( 5V 3A /9V 3A /12V 3A/15V 3A/20V 3A)
USB-A1: QC3.0 (5V 3A/9V 2A /12V 1.5A)
USB-A2 & 3&4: 5V 2.4A |
USB-C 1:PD100W ( 5V 3A /9V 3A /12V 3A/15V 3A/20V 5A)
USB-C 2: PD 27W( 5V 3A /9V 3A)
USB-A1: QC3.0 (5V 3A/9V 2A /12V 1.5A)
USB-A2: QC3.0 (5V 3A/9V 2A /12V 1.5A)
USB-A3&4: 5V 2.4A |
| Operation temperature |
-10～40℃ |
-10～40℃ |
-10～40℃ |
-10～40℃ |
| Lifecycle |
1000 cycles ≥ 80% |
1000 cycles ≥ 80% |
1000 cycles ≥ 80% |
1000 cycles ≥ 80% |
| Shelf-life |
Charge every 3-6 Months |
Charge every 3-6 Months |
Charge every 3-6 Months |
Charge every 3-6 Months |
| Management System |
BMS, Over Voltage Protection, Short Circuit Protection,Over charge Protection,Over-discharge Protection.Over Current Protection,Over Temperature Protection |
BMS, Over Voltage Protection, Short Circuit Protection,Over charge Protection,Over-discharge Protection.Over Current Protection,Over Temperature Protection |
BMS, Over Voltage Protection, Short Circuit Protection,Over charge Protection,Over-discharge Protection.Over Current Protection,Over Temperature Protection |
BMS, Over Voltage Protection, Short Circuit Protection,Over charge Protection,Over-discharge Protection.Over Current Protection,Over Temperature Protection |
| Materials |
Plastic housing (ABS+PC) UL-94V0 |
Plastic housing (ABS+PC) UL-94V0 |
Plastic housing (ABS+PC) UL-94V0 |
Plastic housing (ABS+PC) UL-94V0 |
| Lead Time |
45days |
45days |
45days |
45days |
| Warranty |
1 year after delivery. |
1 year after delivery. |
1 year after delivery. |
1 year after delivery. |
| Net Weight |
3.00Kg |
3.50Kg |
4.5Kg |
9.2Kg |
| Dimensions |
215*160*192mm |
215*160*192mm |
260*173*202mm |
300*310*183mm |
| Certificates |
CE/FCC/PSE/RoHS/UN38.3 |
CE/FCC/PSE/RoHS/UN38.3 |
CE/FCC/PSE/RoHS/UN38.3 |
CE/FCC/PSE/RoHS/UN38.3 |
| Package include |
1X AC Adaptor
1X 1M DC to Car Adapter cable
1X User Guide |
1X AC Adaptor
1X 1m DC to Car Adapter cable
1X User Guide |
1X AC Adaptor
1X 1m DC to Car Adapter cable
1X User Guide |
1X AC Adaptor
1X 1m DC to Car Adapter cable
1X User Guide |
| Package Dimension: |
285*225*290mm |
285*225*290mm |
330*225*230mm |
335*231*206mm |
| G.W(Kg) |
4.15Kg |
4.65kg |
5.64kg |
10.35Kg |
| Units per Export Carton |
2pcs |
2pcs |
2pcs |
1pc |
| Master Carton Dimension |
460*399*305mm |
460*399*305mm |
470*350*310mm |
430*325*320mm |
| G.W (Kg) |
9.6Kg |
11.3Kg |
14.6Kg |
11.5Kg |
